ISO9000 Bidirectional 50Ohm 160dbc Fixed Rf Attenuator

Name: ISO9000 Bidirectional 50Ohm 160dbc Fixed Rf Attenuator
Brand: Vinncom
Price: 1 USD

China ISO9000 Bidirectional 50Ohm 160dbc Fixed Rf Attenuator wholesale

Brand Name : Vinncom

Model Number : VN-LPAT-738-100W-OPx

Certification : ROHS ISO9000

Place of Origin : CHINA

MOQ : 10

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, T/T

Supply Ability : 100pcs per day

Connector : 4.3-10 male-4.3-10 female

Frequency : 617-3800 MHz ,698-3800MHz

Design : Coupler+Cable rolling

PIM : -165dbc @ 43dbm*2

Color : Black or Customized

Contact Now

617-3800MHz 698-3800MHz 100W 4.3-10 Male To 4.3-10 Female Low PIM -155dbc 160dbc 5~40dB RF Coaxial Attenuators

RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.

VN-LPAT-0738-100W-OPx.pdf

Part Number	VN-LPAT-0738-100W-OPx
Operating Frequency ( MHz )	698-3800
Impedance ( Ohm )	50
VSWR	≤1.25
Attenuation(dB)	5 ± 0.8	6 ± 0.8	7 ± 0.9	10 ± 1.0	15 ± 1	20 ± 1.2	30 ± 1.5
IM3 (dBc @2×43dBm)	-155 / -163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Male To 4.3-10 Female
Handling Power (Watt, max)	100
Peak Power (Watt, max)	800
Dimension (mm)	220 × 170 × 68 (excludes connector)
ROHS Compliance	Yes
Revision	R1
Date	30-Dec-2020

Product Tags:

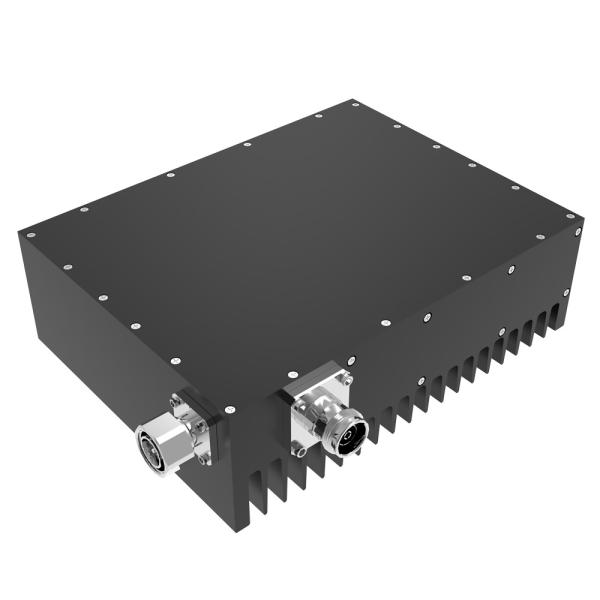

ISO9000 Bidirectional 50Ohm 160dbc Fixed Rf Attenuator Images
